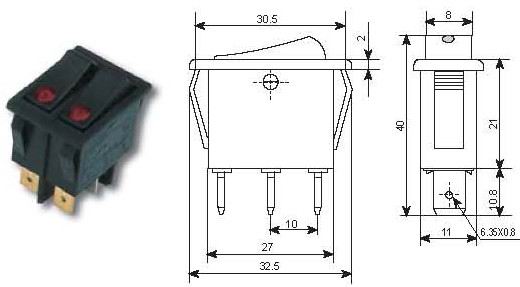

※ KCD4-2
RATINGS CONTACT CONFIGURATION ORDERING CODE
15A, 250VAC DOUBLE:1pole,1throw,with indicator light A
DOUBLE:1pole,1throw B
DOUBLE:1pole,2throw C

  Mounting Hole: 30.5(29.5)×11(mm)

Series KCD4-2 is our patent product.

■ORDERING INFORMATION:

KCD4 - 2A - A
B
C
--ORDERING CODE
